Name: Signal Intersections

Display Field: UID

Type: Feature Layer

Geometry Type: esriGeometryPoint

Description: This layer contains the data for the signal intersections for the Transportation department in the City of Round Rock, located in Williamson County, Texas. This layer is part of an original dataset provided and maintained by the City of Round Rock GIS/IT Department and the Planning and Development Services Department. The data in this layer are represented as points. A signal intersection is an intersection of two or more roadways that includes a signal. Information about addresses, locations, status, system, and type are included in this layer. The City of Round Rock currently has data for 102 signal intersections in this layer.

Service Item Id: dece60f640da4b479e1be23639f2fbf9

Copyright Text: City of Round Rock GIS/IT and PDS Departments

Default Visibility: false

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 3102933.5536842197
YMin: 1.014747638177289E7
XMax: 3171140.9418754727
YMax: 1.018791377465123E7
Spatial Reference: 102739  (2277)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSMSCircle
Color: [142, 165, 48, 255]
Size: 4.0
Angle: 0.0
XOffset: 0
YOffset: 0
Outline:
[0, 0, 0, 255] Width: 0
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• UID ( type: esriFieldTypeString, alias: UID, length: 20 )
• ADDRESS ( type: esriFieldTypeString, alias: ADDRESS, length: 130 )
• LOCATION ( type: esriFieldTypeString, alias: LOCATION, length: 250 )
• INSTALL_DATE ( type: esriFieldTypeDate, alias: INSTALL_DATE, length: 8 )
• created_user ( type: esriFieldTypeString, alias: created_user, length: 255 )
• created_date ( type: esriFieldTypeDate, alias: created_date, length: 8 )
• last_edited_user ( type: esriFieldTypeString, alias: last_edited_user, length: 255 )
• last_edited_date ( type: esriFieldTypeDate, alias: last_edited_date, length: 8 )
• SIGNAL ( type: esriFieldTypeString, alias: SIGNAL, length: 50 )
• SYSTEM ( type: esriFieldTypeString, alias: SYSTEM, length: 50 )
• TYPE ( type: esriFieldTypeString, alias: TYPE, length: 100 , Coded Values: [SPAN WIRE: SPAN WIRE] , [MAST ARM: MAST ARM] )
• PTZ ( type: esriFieldTypeString, alias: PTZ, length: 50 , Coded Values: [AXIS: AXIS] , [COHU: COHU] )
• DETECTION ( type: esriFieldTypeString, alias: DETECTION, length: 50 , Coded Values: [VIDEO: VIDEO] , [LOOP: LOOP] , [RADAR: RADAR] )
• PED_Xing ( type: esriFieldTypeString, alias: PED X, length: 50 , Coded Values: [COUNTDOWN: COUNTDOWN] , [AUDIBLE: AUDIBLE] , [FLASHER: FLASHER] , ...1 more... )
• GlobalID ( type: esriFieldTypeGlobalID, alias: GlobalID, length: 38 )
• SHAPE ( type: esriFieldTypeGeometry, alias: SHAPE )
• SIGNAL_ID ( type: esriFieldTypeSmallInteger, alias: SIGNAL_ID )
• IP_ADDRESS ( type: esriFieldTypeString, alias: IP_ADDRESS, length: 15 )
• Sepac_Version ( type: esriFieldTypeString, alias: Sepac_Version, length: 255 )
• Up_Time ( type: esriFieldTypeString, alias: Up_Time, length: 255 )
• Flash_Status ( type: esriFieldTypeString, alias: Flash_Status, length: 255 )
• Preempt_1_Status ( type: esriFieldTypeString, alias: Preempt_1_Status, length: 255 )
• Preempt_2_Status ( type: esriFieldTypeString, alias: Preempt_2_Status, length: 255 )
• Preempt_3_Status ( type: esriFieldTypeString, alias: Preempt_3_Status, length: 255 )
• Preempt_4_Status ( type: esriFieldTypeString, alias: Preempt_4_Status, length: 255 )
• Preempt_5_Status ( type: esriFieldTypeString, alias: Preempt_5_Status, length: 255 )
• Preempt_6_Status ( type: esriFieldTypeString, alias: Preempt_6_Status, length: 255 )
• TOWERS ( type: esriFieldTypeString, alias: Towers, length: 255 , Coded Values: [1431 Tower: 1431 Tower] , [Orion Tower: Orion Tower] , [Mays Tower: Mays Tower] , ...4 more... )
• Controller ( type: esriFieldTypeString, alias: Controller, length: 255 )
• ILSN ( type: esriFieldTypeSmallInteger, alias: ILSN )
• Illumination ( type: esriFieldTypeString, alias: Illumination, length: 255 )

Relationships:

• TRANS_PTZ (2) -- Related To: TRANS_PTZ (17)
• TRANS_SIGNAL_HEADS (3) -- Related To: TRANS_SIGNAL_HEADS (16)
• TRANS_ILSN (4) -- Related To: TRANS_ILSN (20)
• SIGNAL_CABINETS (5) -- Related To: SIGNAL_CABINETS (26)
• TRANS_UPS (6) -- Related To: TRANS_UPS (34)
• TRANS_CONTROLLER (7) -- Related To: TRANS_CONTROLLER (23)
• TRANS_VEHICLE_DETECTION (8) -- Related To: TRANS_VEHICLE_DETECTION (32)
• TRANS_COMM_SWITCH (9) -- Related To: TRANS_COMM_SWITCH (25)
• TRANS_EMERGENCY_PREEMPTION (10) -- Related To: TRANS_EMERGENCY_PREEMPTION (22)
• TRANS_MMU (11) -- Related To: TRANS_MMU (19)
• TRANS_PEDESTRIAN_CONTROLS (12) -- Related To: TRANS_PEDESTRIAN_CONTROLS (18)
• TRANS_COMMUNICATION (13) -- Related To: TRANS_COMMUNICATION (24)
• TRANS_ILLUMINATION (14) -- Related To: TRANS_ILLUMINATION (21)

Supported Operations:   Query   Query Attachments   Query Analytic   Query Related Records   Generate Renderer   Return Updates

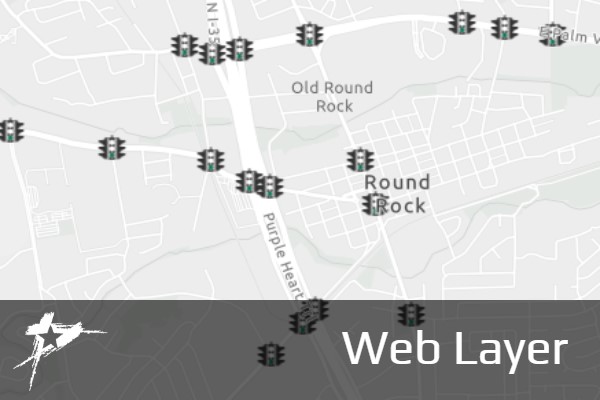

  Iteminfo   Thumbnail   Metadata
