Name: Ultimate Road Buildout

Display Field: FULL_NAME

Type: Feature Layer

Geometry Type: esriGeometryPolyline

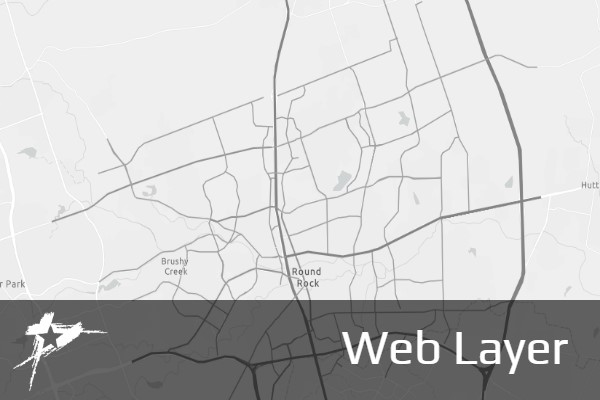

Description: <DIV STYLE="text-align:Left;"><DIV><DIV><P><SPAN>This layer contains the data for the ultimate road buildout in the City of Round Rock, located in Williamson County, Texas. This layer is part of an original dataset provided and maintained by the City of Round Rock GIS/IT Department and the Planning and Development Services Department. The data in this layer are represented as polylines. </SPAN></P><P><SPAN>The ultimate road buildout is a data layer that is comprised of the present and planned/future major roads in the City of Round Rock. The roads that have not yet been built are part of the City's Comprehensive Plan for the year 2030. The existing roads fall into either the current, down town project, highway, improved, or new construction status.</SPAN></P><P><SPAN>The purpose of this layer is to display major roads in the City of Round Rock in conjunction with planned roads as they are implemented into the City's Comprehensive Plan. </SPAN></P></DIV></DIV></DIV>

Service Item Id: 68d364fbc5b94e4691b1d8607e8498e3

Copyright Text: City of Round Rock GIS/IT and PDS Departments

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 3094738.500192523
YMin: 1.0137520001751348E7
XMax: 3172746.0945051163
YMax: 1.0201779503809512E7
Spatial Reference: 102739  (2277)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSLSSolid
Color: [35, 147, 71, 255]
Width: 1
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID_1 ( type: esriFieldTypeOID, alias: OBJECTID_1 )
• OBJECTID ( type: esriFieldTypeDouble, alias: OBJECTID )
• SEGMENT_ID ( type: esriFieldTypeDouble, alias: SEGMENT_ID )
• FULL_NAME ( type: esriFieldTypeString, alias: FULL_NAME, length: 75 )
• RD_NAME ( type: esriFieldTypeString, alias: RD_NAME, length: 60 )
• ALIAS_NAME ( type: esriFieldTypeString, alias: ALIAS_NAME, length: 75 )
• ROAD_CLASS ( type: esriFieldTypeString, alias: ROAD_CLASS, length: 35 )
• SHIELD_LAB ( type: esriFieldTypeString, alias: SHIELD_LAB, length: 10 )
• STATUS ( type: esriFieldTypeString, alias: STATUS, length: 25 )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• GlobalID ( type: esriFieldTypeGlobalID, alias: GlobalID, length: 38 )
• Shape.len ( type: esriFieldTypeDouble, alias: Shape.len )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

  Iteminfo   Thumbnail   Metadata
