Name: Route Lines

Display Field: Name

Type: Feature Layer

Geometry Type: esriGeometryPolyline

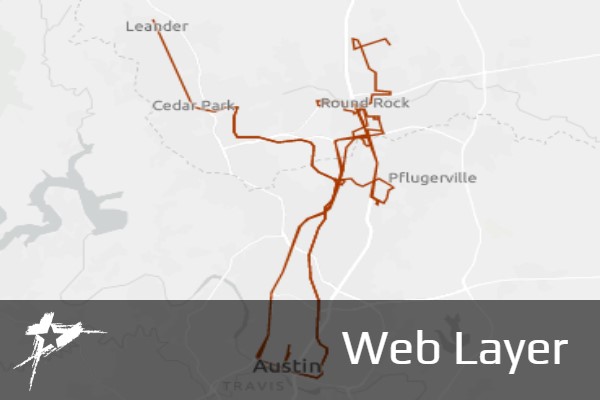

Description: This layer contains the data for the route lines for the Transportation department in the City of Round Rock, located in Williamson County, Texas. This layer is part of an original dataset provided and maintained by the City of Round Rock GIS/IT Department and the Planning and Development Services Department. The data in this layer are represented as polylines.A route line is a route or pathway in which the Capital Metro rail, or other rail authorities run around the city. There are currently 8 unique route lines, separated further into 41 segments in this layer. The route lines are Howard Express, Round Rock Circulator, Round Rock-Howard Station, CapMetro 243, Round Rock-Tech Limited, and the CapMetro Red Line.

Service Item Id: d41723f9f7ce4410ac9ec4e150ea53aa

Copyright Text: City of Round Rock GIS/IT and PDS Departments

Default Visibility: false

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 3076129.444890976
YMin: 1.0067623584457815E7
XMax: 3148406.7179870456
YMax: 1.0185763863924816E7
Spatial Reference: 102739  (2277)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSLSSolid
Color: [41, 130, 66, 255]
Width: 1
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: true

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• Name ( type: esriFieldTypeString, alias: Name, length: 255 )
• Route_Number ( type: esriFieldTypeString, alias: Route_Number, length: 8 )
• Route_Name ( type: esriFieldTypeString, alias: Route_Name, length: 40 )
• Type ( type: esriFieldTypeString, alias: Type, length: 30 )
• Symbol ( type: esriFieldTypeString, alias: Symbol, length: 4 )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• GlobalID ( type: esriFieldTypeGlobalID, alias: GlobalID, length: 38 )
• created_user ( type: esriFieldTypeString, alias: created_user, length: 255 )
• created_date ( type: esriFieldTypeDate, alias: created_date, length: 8 )
• last_edited_user ( type: esriFieldTypeString, alias: last_edited_user, length: 255 )
• last_edited_date ( type: esriFieldTypeDate, alias: last_edited_date, length: 8 )
• UID ( type: esriFieldTypeString, alias: UID, length: 20 )
• Status ( type: esriFieldTypeString, alias: Status, length: 255 , Coded Values: [Open: Open] , [Closed: Closed] )
• Shape.STLength() ( type: esriFieldTypeDouble, alias: Shape.STLength() )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

  Iteminfo   Thumbnail   Metadata
